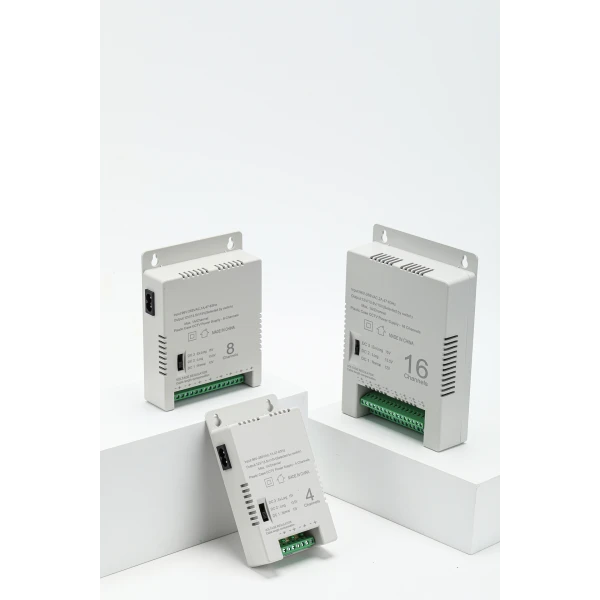

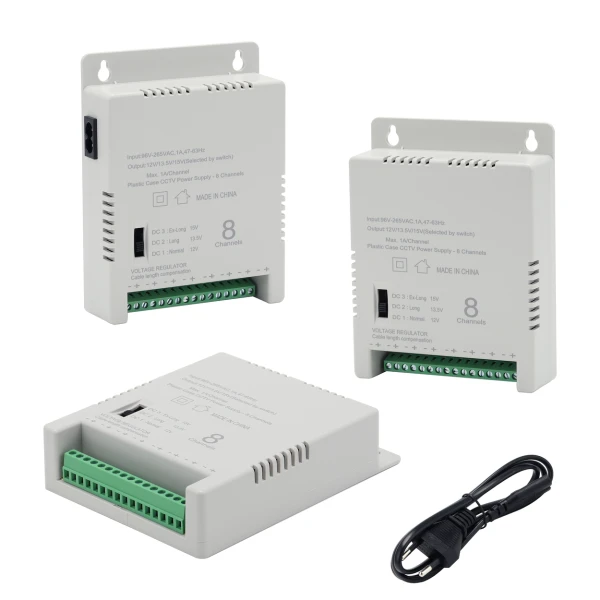

PSH-1210A 8-Channel Power Supply/Distributor for CCTV Cameras, 12V 12.5A, Plastic Case
Input voltage: 96-265V AC 50/60Hz
Output voltage: 12V DC (Normal), 13.5V DC (Long), 15V DC (Ex Long) ? selectable via switch
Output power: 12.5A/100VA max
Output distribution: 8 channels x 1A max per output each one protected by a PTC fuse (resets after the problem is resolved)
Protection against: Short circuit, overload, overvoltage
Indicators: LED status indicators
Suitable for: Powering PTZ cameras, IR illuminators, VDRs, etc.
Features: Wall-mounting capability
Dimensions: 162 x 50 x 30 mm
Weight: 0.285 kg
