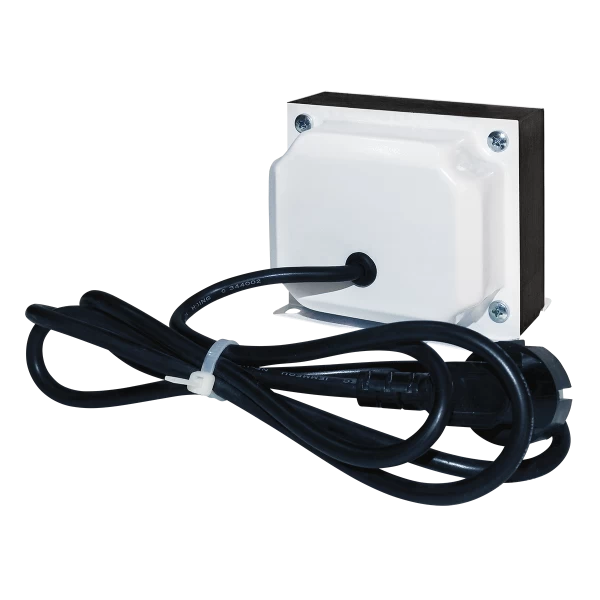

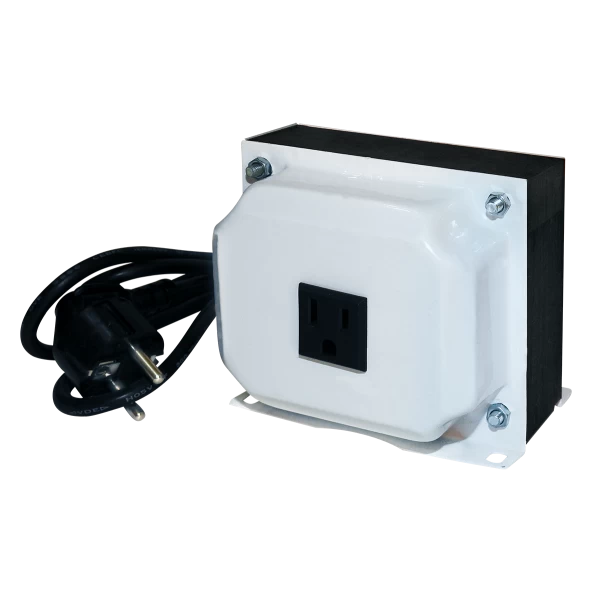

CTR-110-150 Closed type transformer 150VA

The transformer CTR series is manufactured exclusively by our company in accordance with the European safety standards EN 61558-2 and is CE marked.

For CTR transformers that are not ready for delivery by our company, 5 working days are required for their manufacturing.

Input voltage: 230V AC 50/60 Hz

Output voltage: 110V AC 50/60 Hz

Power: 150VA max

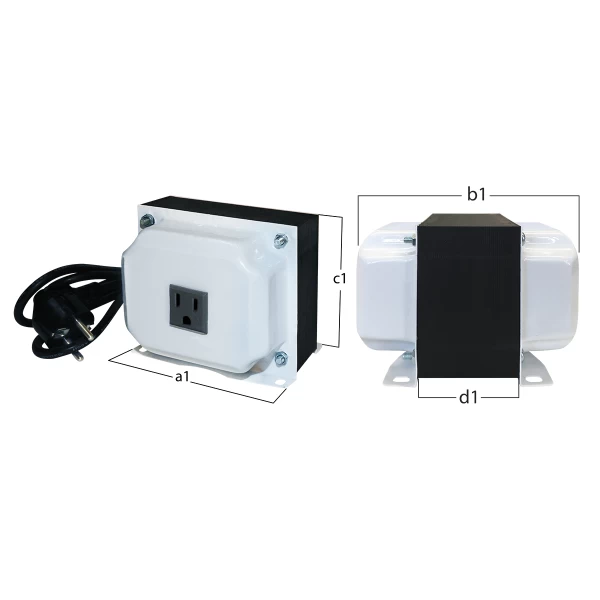

Dimensions: 96(a1)X145(b1)X85(c1)x40(d1) mm

Weight: 2,7 Kgr

Note: For the CTR series, it is possible to manufacture them with an input voltage of 110V AC 50/60Hz and an output voltage of 230V AC 50/60Hz, upon request.
