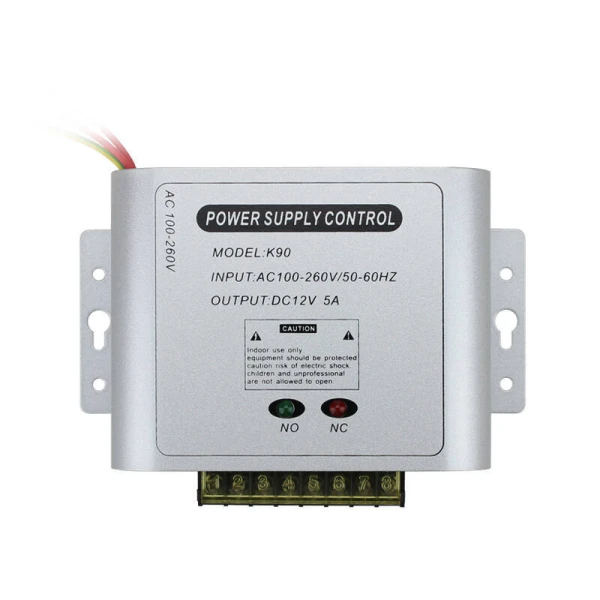

APC-12V 5A Power Supply for Access Control systems and electromagnetic locks (12VDC, 5A)

12VDC 5A Access Control power supply, suitable for powering access control systems, electric locks, etc. It features an NO/NC relay output for directly powering an electric lock, with an adjustable delay of 0?15 seconds. It also includes a control input (12VDC) for remote door opening, as well as an input for connecting an exit button.

Input voltage: 100-260VAC
Output voltage/current: 12V DC 5A via NO/NC relay for direct electric lock power supply, featuring an adjustable delay of 0?15 seconds.
Features: A 12VDC control input (Control + / Control -) that enables remote door opening via a command from a third-party device?such as your home security system, a smart WiFi remote controller, or another similar device.

Features: Input for connecting an exit button (PUSH/GND) to open the door. Additional 12V DC output (+12V / GND), useful for powering an access control keypad that may be part of your installation.
Protection against: Short-circuit, overload, overvoltage.
Mounting: Wall-mountable.
Dimensions: 140x95x38 mm.
Weight: 0.366 kg.
